Standard metal doors

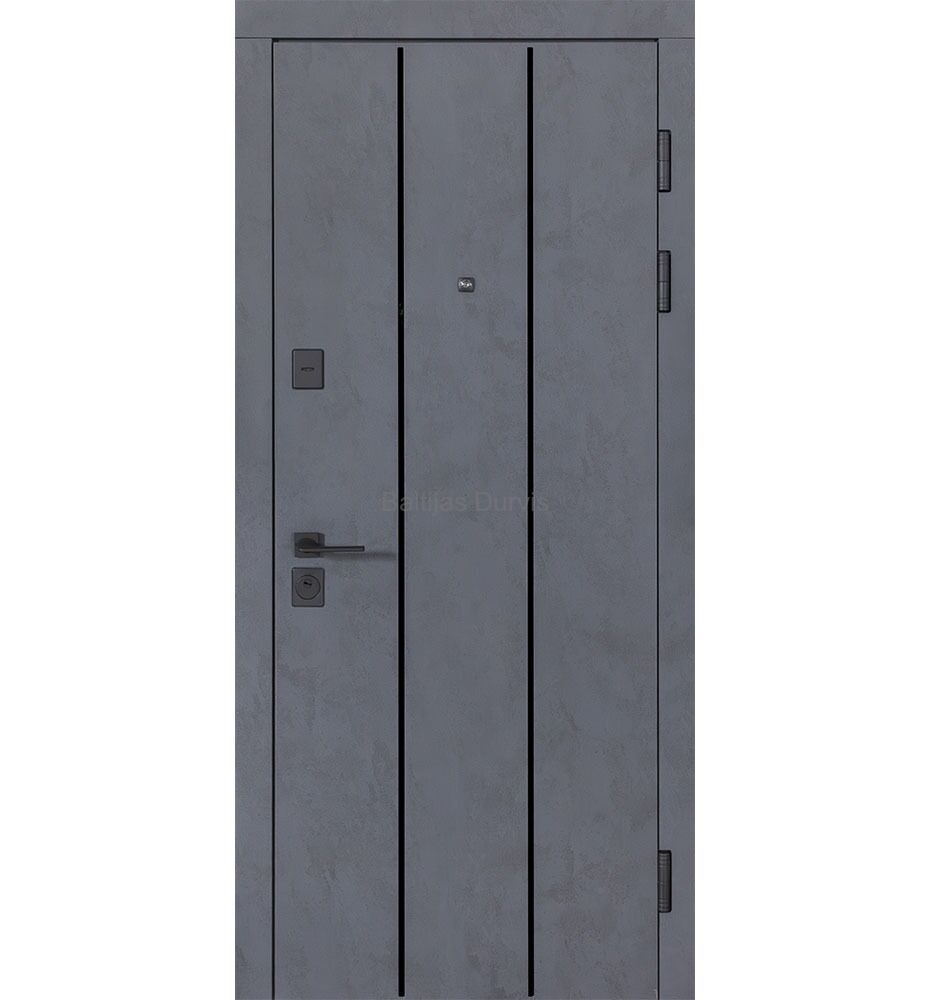

Metal door EKO Kvadro -B434
Leaf thickness: 72 mm Frame thickness: 85 mm, bent metal construction Dimensions: 840 x 2040 mm; 940 x 2040 mm Door weight: 64/68 kg Frame metal thickness: 1.2 mm Leaf construction metal thickness: 1.2 mm Outer metal sheet thickness: 0.5 mm
- Installation
- Consultation
- Warranty
- Leaf thicknessSpecifications
- 72 mm
- Frame thicknessSpecifications
- 85 mm, bent metal construction
- DimensionsSpecifications
- 840 x 2040 mm; 940 x 2040 mm
- Door weightSpecifications
- 64/68 kg
- Frame metal thicknessSpecifications
- 1.2 mm
- Leaf construction metal thicknessSpecifications
- 1.2 mm
- Outer metal sheet thicknessSpecifications
- 0.5 mm
- Leaf edge covered with MDFSpecifications
- Yes
- Exterior finishSpecifications
- MDF 10 mm, colour — Concrete anthracite, drawing «435»
- Interior finishSpecifications
- MDF 10 mm, colour — White oxide, drawing «435»
- Frame metal colourSpecifications
- «Metallic Black» — black
- MDF architrave sizeSpecifications
- thickness 16 mm / width 80 mm, concealed mounting
- Leaf fillingSpecifications
- Mineral wool
- Frame fillingSpecifications
- Absent
- HingesSpecifications
- 3 pcs (diameter 24 mm / 120 mm)
- Anti-removal hinge pinsSpecifications
- 14 mm, 3 pcs
- Number of sealing contoursSpecifications
- 2 on the leaf
- Upper lockSpecifications
- ARIKO (lever (suvald) type), bolts 14 mm
- Lower lockSpecifications
- ARIKO (cylinder type), bolts 16 mm
- CylinderSpecifications
- 30x40 with turn knob inside
- HandleSpecifications
- Kvadro-A
- Additional metal protective plates in the lock areaSpecifications
- Yes
- Fittings colourSpecifications
- Black
- Stiffening ribsSpecifications
- 4 pcs
- Door viewerSpecifications
- Yes

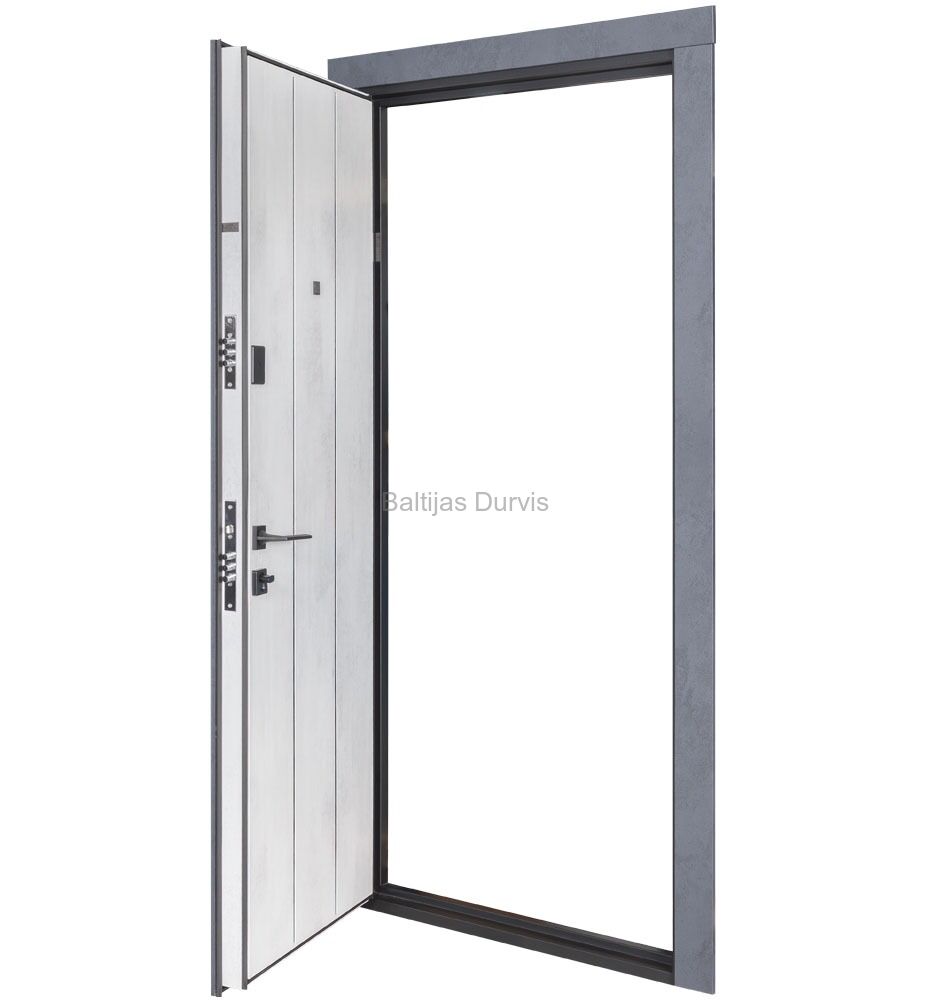

EKO Kvadro B434 with drawing «435» is a metal entrance door for apartments with a 72 mm leaf and an 85 mm bent metal frame. The 10 mm MDF finish is concrete anthracite outside and white oxide inside, and the leaf is filled with mineral wool.
Lever and cylinder ARIKO locks, a 30x40 cylinder with a turn knob inside and additional metal protective plates protect the door, while 3 hinges with 14 mm anti-removal pins hold the leaf. Sizes are 840 x 2040 mm and 940 x 2040 mm, with a Kvadro-A handle.
- Leaf thickness: 72 mm
- Frame thickness: 85 mm, bent metal construction
- Dimensions: 840 x 2040 mm; 940 x 2040 mm
- Door weight: 64/68 kg
- Frame metal thickness: 1.2 mm
- Leaf construction metal thickness: 1.2 mm
- Outer metal sheet thickness: 0.5 mm
- Leaf edge covered with MDF: Yes
- Exterior finish: MDF 10 mm, colour — Concrete anthracite, drawing «435»

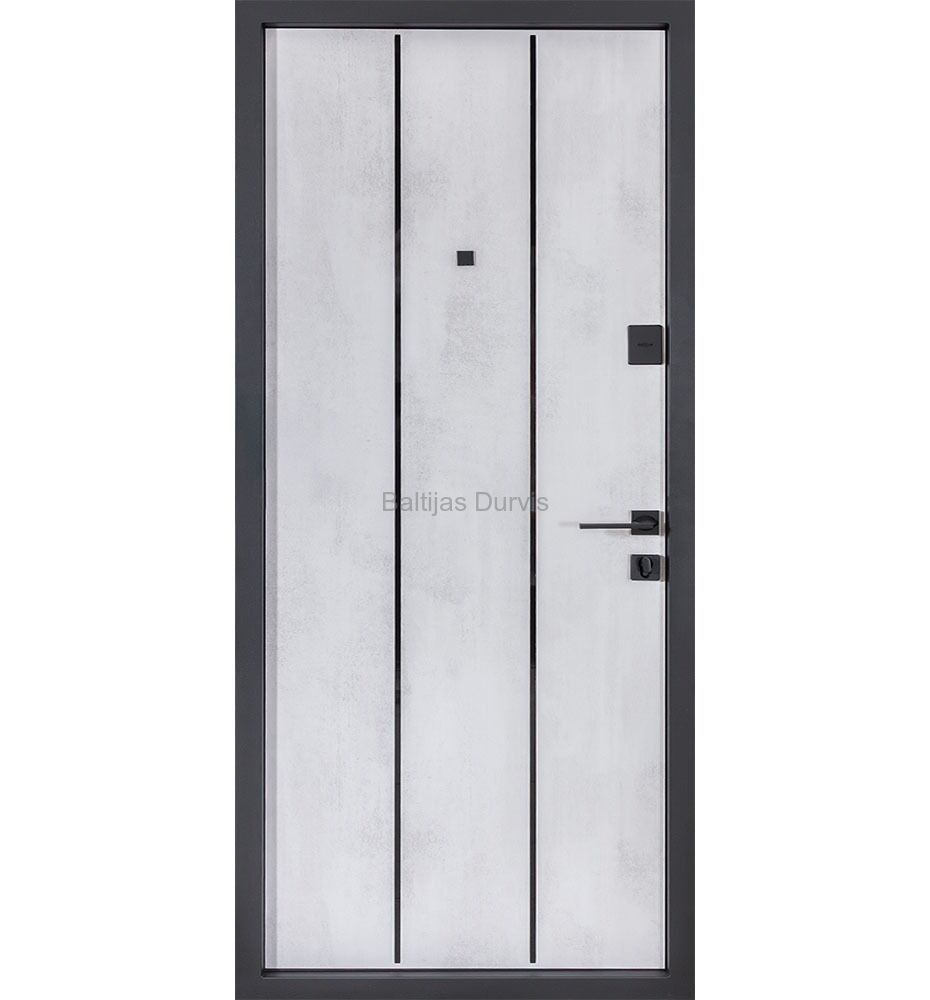

- Interior finish: MDF 10 mm, colour — White oxide, drawing «435»
- Frame metal colour: «Metallic Black» — black
- MDF architrave size: thickness 16 mm / width 80 mm, concealed mounting
- Leaf filling: Mineral wool
- Frame filling: Absent

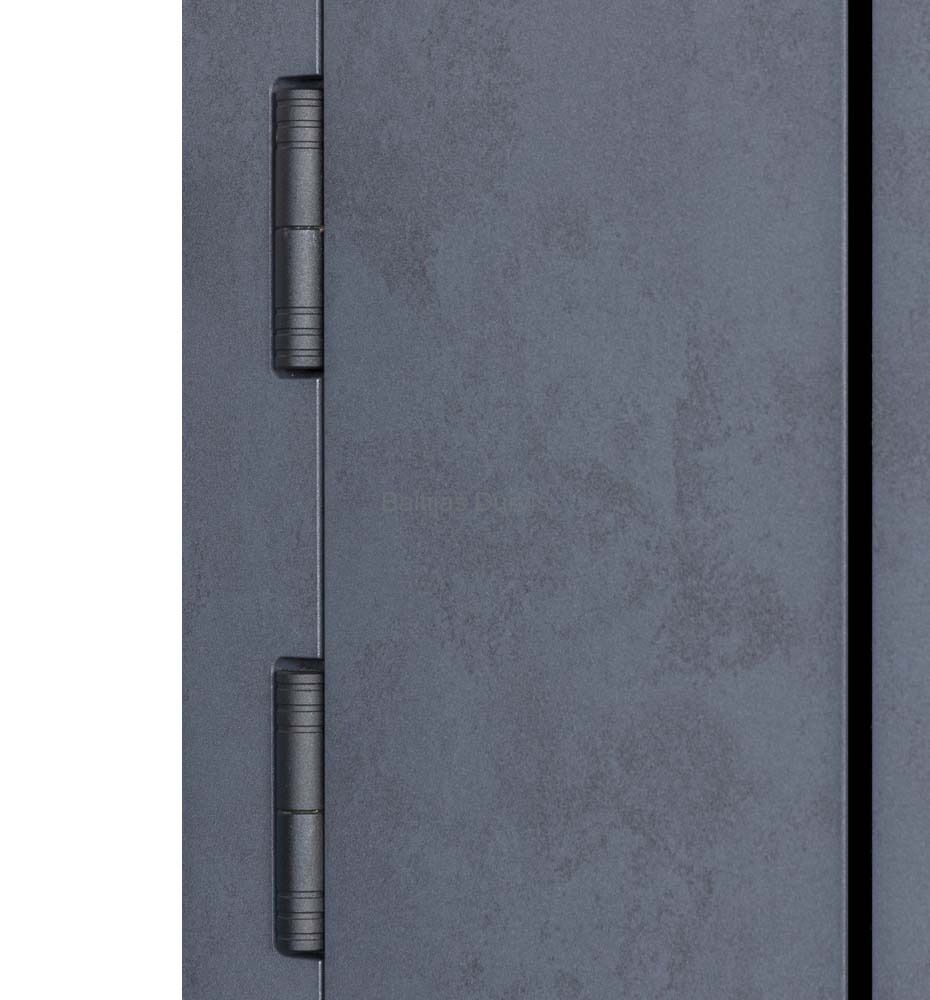

- Hinges: 3 pcs (diameter 24 mm / 120 mm)
- Anti-removal hinge pins: 14 mm, 3 pcs
- Number of sealing contours: 2 on the leaf

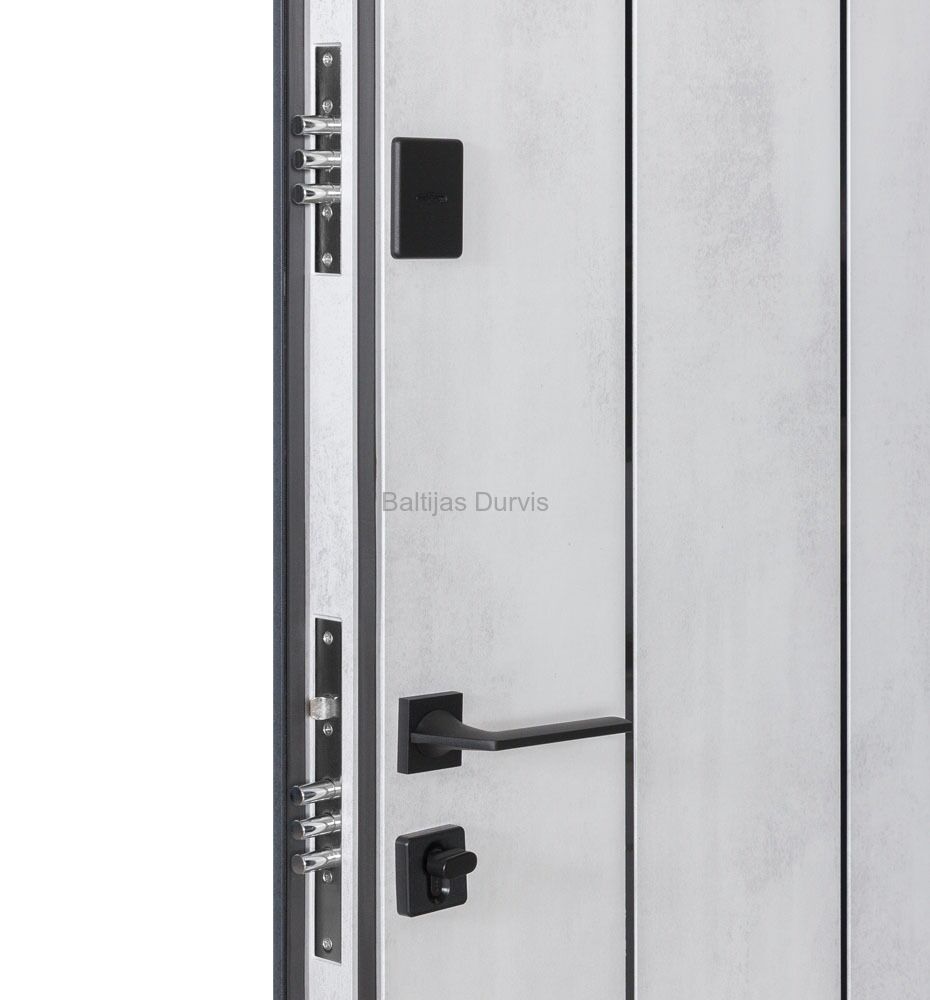

- Upper lock: ARIKO (lever (suvald) type), bolts 14 mm
- Lower lock: ARIKO (cylinder type), bolts 16 mm
- Cylinder: 30x40 with turn knob inside
- Handle: Kvadro-A
- Additional metal protective plates in the lock area: Yes
- Fittings colour: Black
- Stiffening ribs: 4 pcs
- Door viewer: Yes
Delivery and installation are arranged individually. Professional fitting of metal entrance doors with warranty.
